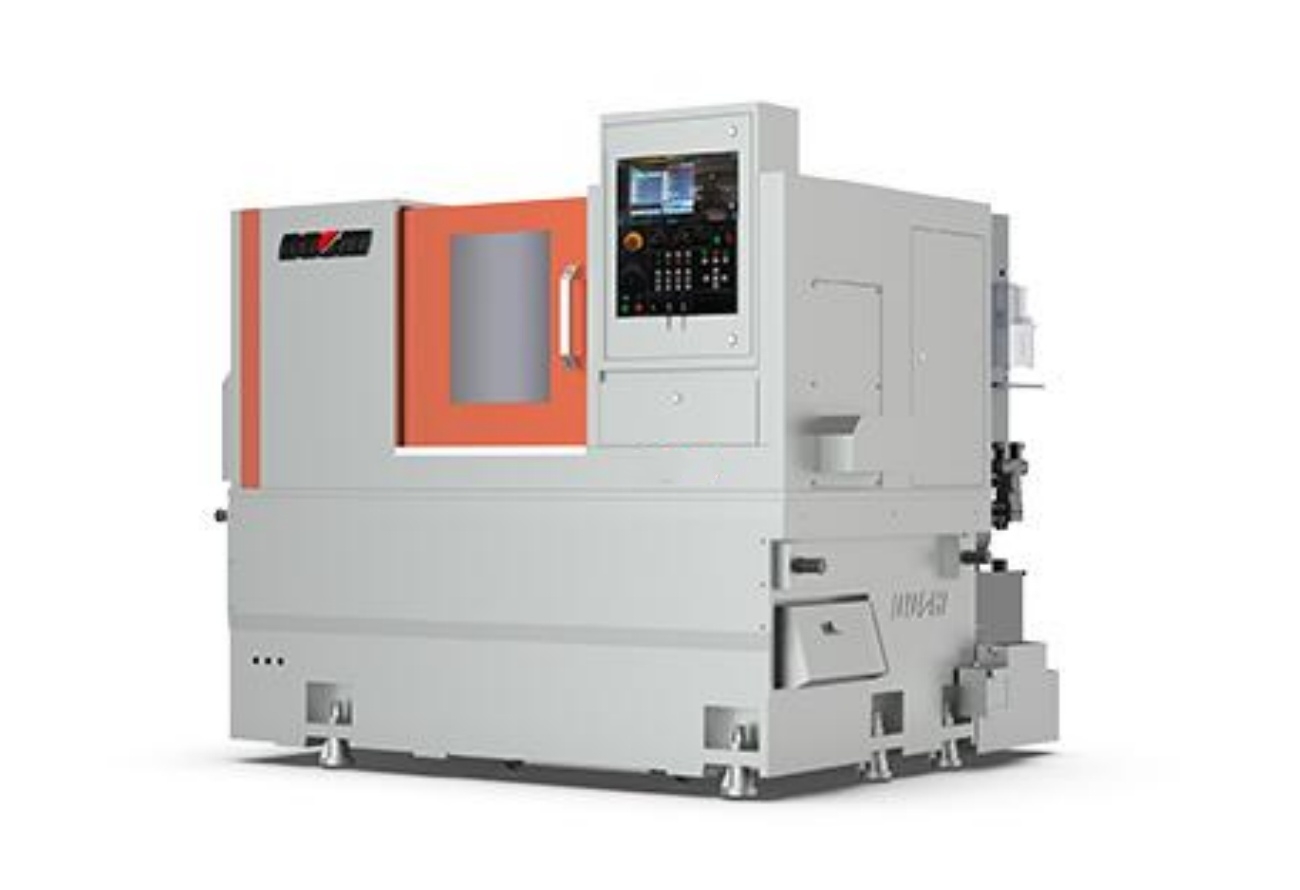

BC3751-H is a high-performance and multifunctional turning center. Machine tool has C-axis and milling functions, which can finish most or all of the processing of complex parts in one installation. It is particularly suitable for the processing of complex shaped parts and can better adapt to the increasing demand for CNC machine tool functions and high accuracy demands in industries such as ,automotive, light industry, and machinery.
|
Items |
unit |
Specifications |
|
|
Capacity
|
Max. swing diameter over bed |
mm |
φ550 |
|
Max. swing diameter over slide |
mm |
φ345 |
|
|
Max. cutting diameter |
mm |
φ360 |
|
|
Max. turning length |
mm |
320 |
|
|
Max.bar diameter |
mm |
φ50 |
|
|
Spindle
|
Chuck size |
inch |
8 "Hollow |
|
Spindle nose |
|
A2-6(GB/T5900.1) |
|
|
Spindle speed |
rpm |
50-4500 |
|
|
Main motor power |
kW |
11/16.5kw |
|
|
feed
|
Travel X/Z |
mm |
210/400 |
|
Rapid feed speed X/Z |
m/min |
30/30 |
|
|
Turret
|
Turret form |
|
BMT55 power turret |
|
Capacity |
pcs |
12 |
|
|
Tools size |
mm |
25×25/Ф32 |
|
|
Power turret
|
Tools form |
|
BMT55 |
|
Milling Spindle Max. speed |
rpm |
3800 |
|
|
Max.tool shank diameter |
mm |
Φ20 |
|
|
Tool motor torque |
Nm |
15 |
|
|
Power axis motor power |
Kw |
3.1 |
|
|
Tailstock
|
Travel of tailstock |
mm |
350 |
|
Taper of center sleeve |
mm |
MT No.5 |
|
|
Tailstock form |
|
Hydronic programmable control |
|
|
others
|
Power capacity |
KVA |
42 |
|
Bed layout form |
|
30° |
|
|
Dimensions （L×W×H） |
mm |
2350X2600X1900 (including rear chip conveyor)/ 3800X1800X1900 (including side chip conveyor)/ 2350X1800X1900 (excluding chip conveyor) |
|
|
weight(net /gross ) |
Kg |
5000kg (including chip conveyor)/ 4700kg (excluding chip conveyor) |
